A. Lange & Söhne Zeitwerk Minute Repeater White-Gold Edition (Price, Pictures and Specifications)
Presented in 2015, the A. Lange & Söhne Zeitwerk Minute Repeater is the world's only watch that combines a mechanical jumping numeral display with a decimal minute repeater. The complicated timepiece – its assembly alone requires several months – has so far been available only in platinum. Five years after its debut, it now comes in a limited 30-watch edition in white gold with a deep-blue dial.
The A. Lange & Söhne Zeitwerk Minute Repeater features a totally new interpretation of the classic complication. Its striking mechanism – it sounds ten-minute intervals instead of quarter- hours with double strikes – is a convincing logical complement to the "digital" display of the time.

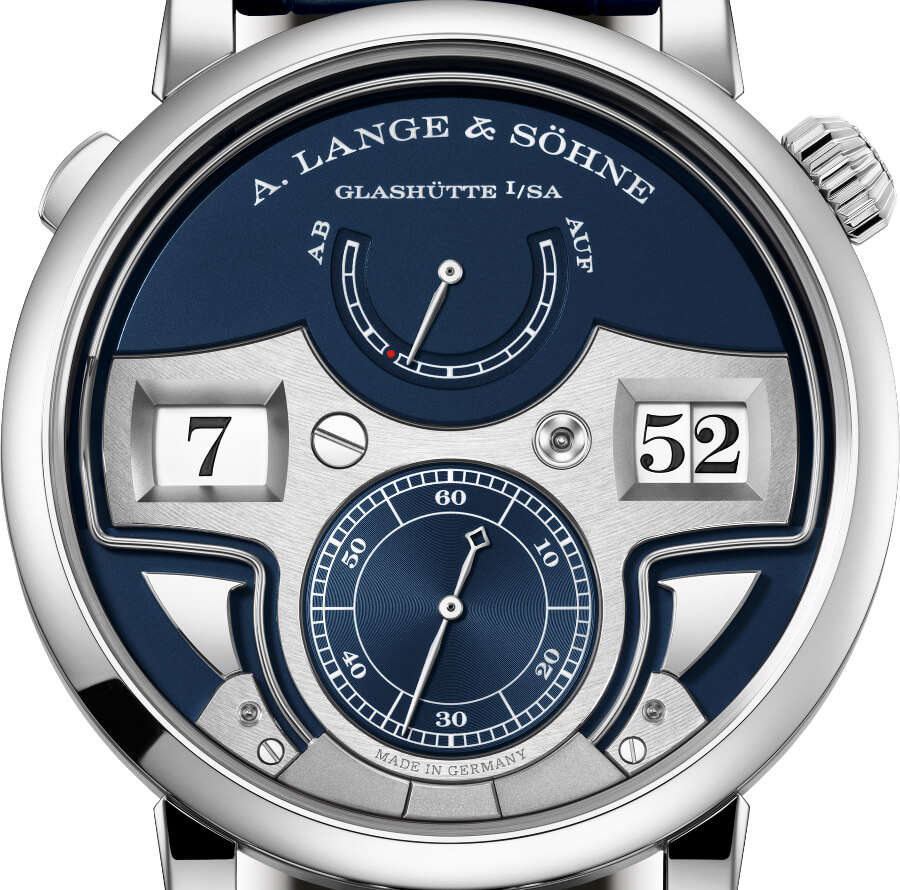

As soon as the striking mechanism is activated with the repeater pusher at 10 o'clock, it sounds the time as indicated on the dial. One hears what one sees. And one sees what one hears. At 7.52, for instance, the gong hammer on the left strikes the low-pitched gong seven times, once for every elapsed hour. Then, five double tones are struck for the elapsed ten-minute intervals, followed by the right-hand hammer with two high strikes, one for each elapsed minute. The polished gongs and the black-polished gong hammers are subtly integrated in the design of the dial.
Special design features
In the development of the striking mechanism, Lange's engineers relied on the basic principle of the jumping numerals mechanism with which the time is displayed by an hour ring and two-minute discs. This configuration makes it possible to sample the number of strikes to be executed – separately for the hours, ten-minute intervals and minutes – directly on the snails that are connected to the mechanical display elements. At the same time, enlarged sampling surfaces enhance the reliability of the striking mechanism. This assures that the acoustic time always corresponds to the displayed time.
Pusher instead of slide
The A. Lange & Söhne Zeitwerk Minute Repeater features a unique pusher mechanism for triggering the repeater. Because the power for the striking mechanism is delivered by the mainspring barrel, there is no need for a slide – common in minute repeaters – to tension a separate spring. The absence of a large lateral opening in the case eliminated a source of acoustic disruption, thus improving the sound quality. And since a pusher, unlike a slide, can be sealed, the A. Lange & Söhne Zeitwerk Minute Repeater is water-resistant to as much as 3 bars.
Harmonious sound
To achieve the best possible sound quality, the product developers carefully reconciled all relevant parameters such as the case, gong hammers, gongs and movement architecture with one another. The large white-gold case delivers a reverberant, warm sound. The gongs, patiently tuned by hand, generate pure, resonant tones in perfect harmony.
Finesse in details
The A. Lange & Söhne Zeitwerk Minute Repeater stands out with a number of refined technical features that in particular optimise its operation.
Since a switching action could cause mechanical conflicts while the repeater is running, the numerals discs are prevented from incrementing until the repeater sequence has ended. This can take up to 20 seconds. The delay also assures that the digitally displayed time and the acoustic time are always the same.
For the same reason, the crown cannot be pulled while the striking mechanism is active. The actuation of the repeater pusher uncouples the wheel train of the winder from the ratchet wheel that drives the striking mechanism. This prevents the wheel train of the winder, including the crown, from rotating during the repeater sequence, which would result in an unnecessary loss of energy.

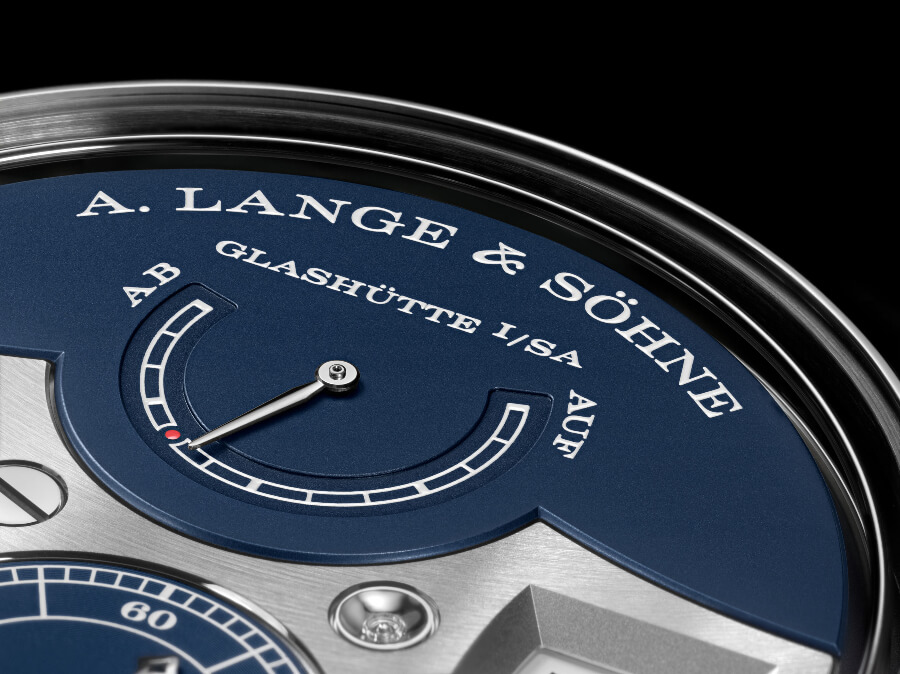

Finally, when the power reserve drops to less than twelve hours, the striking mechanism can no longer be activated. This assures that the repeater sequence is always executed in full: The watch will not stop unexpectedly before the strike sequence has been completed. On the power-reserve indicator, the 12-hour mark is identified with a red dot.
Jumping numerals mechanism
With their precisely jumping numerals display, the A. Lange & Söhne Zeitwerk models stand for uncompromising purity of design. Consisting of three discs, the display module is arranged in such a way that the time, with large-format numerals, can be read from left to right in the natural way. With a gentle click and hardly discernible to the human eye, the patented jumping numerals mechanism advances from minute to minute until, at the top of the hour, all three numerals discs simultaneously jump forward by precisely one increment. An exceptionally strong mainspring is required to handle these switching actions. It is equally important to assure the controlled deceleration of the abruptly accelerated discs to rule out damage to the movement. This is done with a fly governor that absorbs excess energy after each switching sequence.
Constant-force escapement
As all models of the Zeitwerk watch family, the A. Lange & Söhne Zeitwerk Minute Repeater also features a patented constant-force escapement between the barrel and the balance that acts as a pacemaker for the instantaneous advance of the numeral’s discs in one-minute intervals. At the same time, it makes an important contribution to rate stability by assuring that the balance – regardless of the state of wind of the watch and despite energy-intensive switching processes – is powered with a consistent amount of force across the entire power-reserve duration.
Flawless craftsmanship

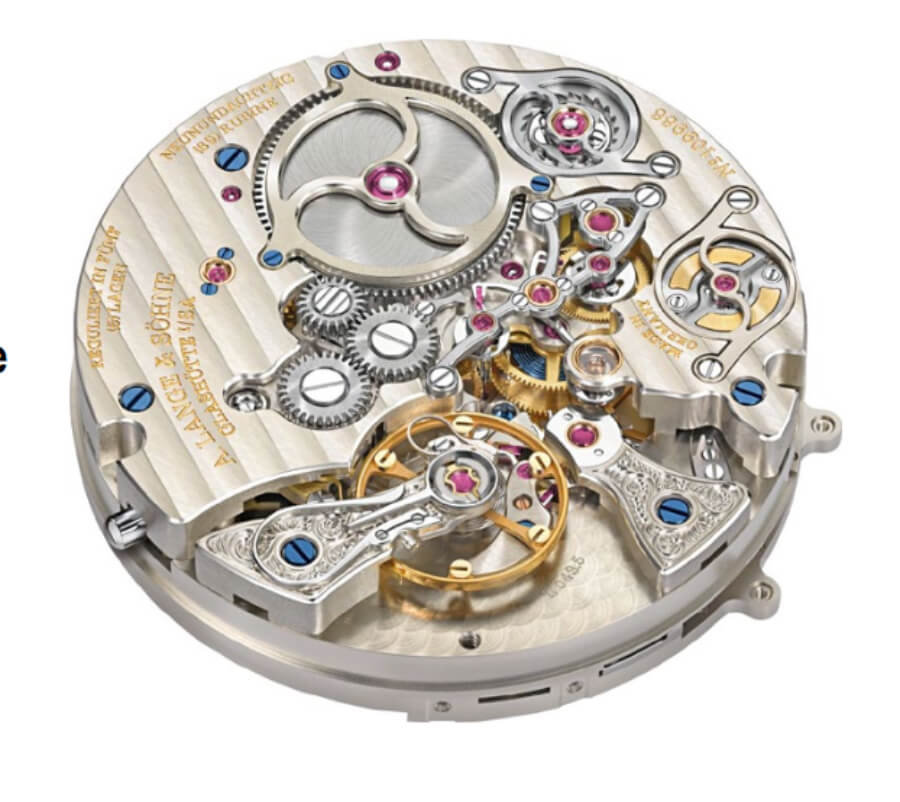

Composed of 771 parts, the manufacture calibre L043.5 is completed by hand with extreme care and utmost patience. Of the 93 jewels, three are set in screwed gold chatons. The hand-engraved balance cock – the artistic signature of all Lange watches – was given a design complement: the escape-wheel cock engraved with the same motif.
Edition 2020

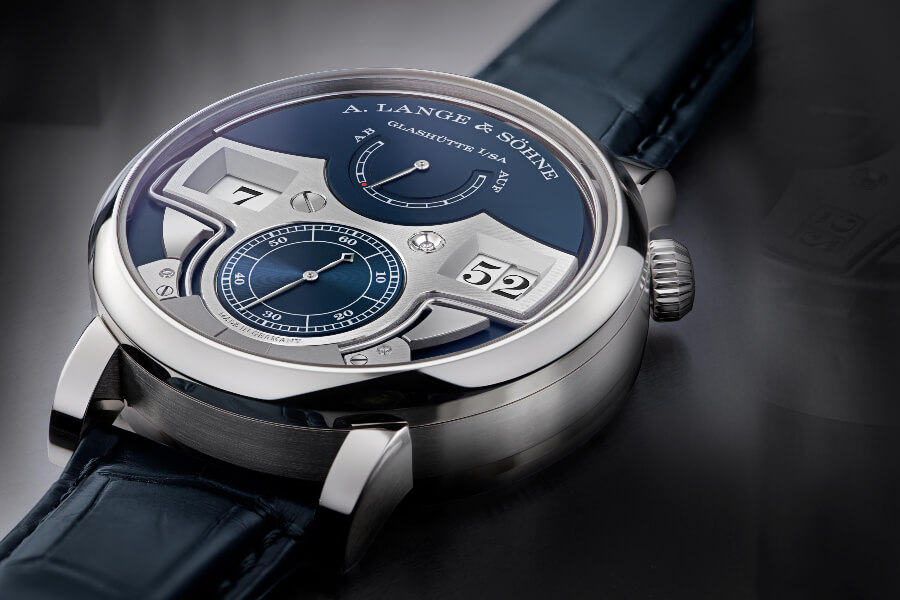

Five years after its debut in 2015, the A. Lange & Söhne Zeitwerk Minute Repeater now comes in a 44.2-millimetre white-gold case with a matching deployant. The deep-blue dial in solid silver contrasts beautifully against the rhodiumed German silver time bridge. A blue hand-stitched leather strap highlights the elegance of the timepiece. Limited to 30 watches, this edition is available exclusively in the 33 A. Lange & Söhne boutiques.
A. Lange & Söhne Zeitwerk Minute Repeater
Technical specifications:
· Ref. 147.028F
· Movement: Lange manufacture calibre L043.5, manually wound, crafted to the most exacting Lange quality standards, decorated and assembled by hand; precision-adjusted in five positions; three- quarter plate made of untreated German silver; balance and escape-wheel cocks engraved by hand; constant-force escapement
· Movement parts: 771
· No. of jewels: 93
· Screwed gold chatons: 3
· Escapement: Lever escapement
· Oscillation system: Shock-resistant cam-poised balance; balance spring crafted in- house, frequency 18,000 semi-oscillations per hour, precision beat adjustment system with lateral setscrew and whiplash spring
· Power reserve: 36 hours when fully wound if the striking mechanism is not activated
· Functions: Hours and minutes with jumping numerals display, striking mechanism with decimal minute repeater, subsidiary seconds with stop seconds, power-reserve indicator
· Operating elements: Crown for winding the watch and setting the time; pusher for activating the striking mechanism
· Case dimensions: Diameter: 44.2 millimetres; height: 14.1 millimetres
· Movement dimensions: Diameter: 37.7 millimetres; height: 10.9 millimetres
· Crystal and caseback: Sapphire crystal (Mohs hardness 9)
· Case: White gold
· Dial: Solid silver, deep blue
· Time bridge: Rhodiumed German silver
· Hands: Rhodiumed gold
· Strap: Hand-stitched leather, blue
· Buckle: 30 watches
· Limited edition: 30 watches
The price for the A. Lange & Söhne Zeitwerk Minute Repeater Ref. 147.028F is €449,000, including German VAT. The watch is limited edition to 30 pieces and can be founf only atA. Lange & Söhne boutiques.
