The Sinn Spezialuhren EZM 12
• Mission timer for public health – developed in collaboration with emergency physicians
• Simple cleaning and efficient disinfection thanks to special seals and fast assembly/disassembly of strap system and rotation bezel
• Count-up inner rotating bezel for quick and easy reading of the “platinum ten minutes” and “golden hour”, as well as countdown outer rotating bezel
• Pulse rotor with pulse rotor scale for measuring heart rate
• Winner of the Red Dot Award 2019 and the German Design Award 2020
Simple cleaning and efficient disinfection of the strap system and rotating bezel, reliable monitoring of the ‘platinum ten minutes’ and the ‘golden hour’ thanks to the countdown outer rotating bezel, pulse rotor with pulse rotor scale for measuring heart rate – these properties set the award-winning EZM 12 from Sinn Spezialuhren apart from the competition. In terms of form and function, the mission timer has been developed in collaboration with doctors especially for emergency personnel on rescue operations. Furthermore, its functions and properties make it a key tool for anyone working in public health. The EZM 12 allows doctors to measure time reliably and precisely throughout their working day – without compromising on cleanliness and the ability to disinfect it properly. As such, the EZM 12 contributes to saving lives and protecting the health of both doctors and patients.
Hygiene ensured: simple cleaning, efficient disinfection
One of the special features of the EZM 12 particularly relevant to medical personnel is the ease of cleaning and disinfecting the watch, thanks to the quick and simple assembly and disassembly of the strap system and rotating bezel. Each component can be cleaned with disinfectants containing ethanol, propan-2-ol, propan-1-ol and N-alkyl aminopropyl glycine, such as Bacillol 30 Foam. The silicone strap can also be removed without the use of tools. The rotating bezel is easily removed using the large screwdriver on the penknife provided.
Reliable, and no sharp edges

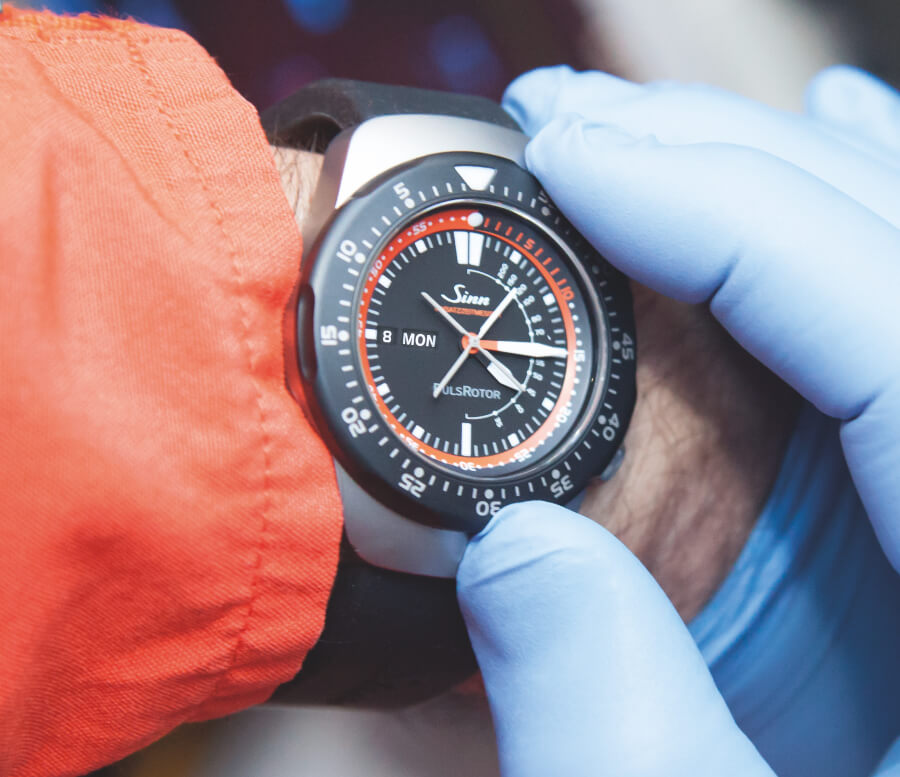

The EZM 12 is a reliable timepiece that has no sharp edges that could tear latex or nitrile gloves. Both crowns on the EZM 12 feature wide grooves, allowing even gloved hands to operate them easily.
Precise time measurement: the “platinum ten minutes” and the “golden hour”
The EZM 12 is an instrument designed to allow doctors to easily monitor a one-hour time period. In emergency medicine, it frequently comes down to those platinum ten minutes and the golden hour, as they are known. Both time frames can be measured precisely with the inner rotating bezel on the EZM 12. A second rotating bezel on the outer edge provides a countdown option, allowing the effects of certain medications to be reliably monitored within a specific period. An integrated pulse scale measures the heart rate every 15 seconds thanks to the rotor-shaped seconds hand.

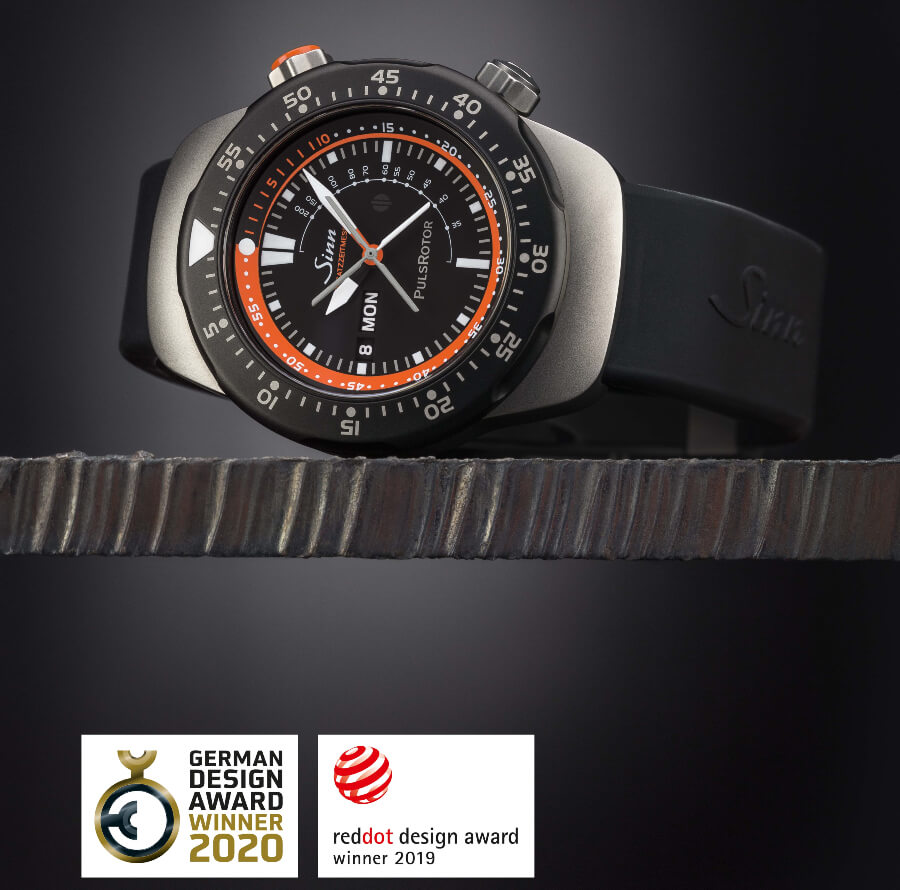

Winner of the Red Dot Award and the German Design Award
The EZM 12 won the Red Dot Award for product design in 2019. The jury found the special properties of the EZM 12 for emergency medicine to be functionally impressive. The EZM 12 went on to win a further accolade in 2020: the German Design Award for “Excellent Product Design 2020”. The watch’s outstanding form and function impressed the jury greatly.
Sinn Spezialuhren EZM 12
Technical specifications:
Mechanical Movement:
• ETA 2836-2
• Self-winding mechanism
• 25 bearing jewels
• 28,800 semi-oscillations per hour
• Seconds stop function
• Shock resistant as per DIN 8308
• Anti-magnetic as per DIN 8309
Case:
• Case made of stainless steel, bead-blasted
• Sapphire crystal glass in front, anti-reflective on both sides
• Case back screw-fastened, nickel-free
• Meet the technical requirements for waterproofness, as set out in standard DIN 8310
• Pressure-resistant up to 20 bars
• Low pressure resistant
Functions:
• Hours, minutes, seconds
• Date display
• Day of the week display
• Count-up inner rotating bezel for quick and easy reading of the platinum ten and golden hour
• Countdown outer rotating bezel
• Pulse rotor with pulse rotor scale for measuring heart rate
SINN Technologies:
• Case made with TEGIMENT Technology and therefore especially scratch-resistant
• Bezel with Black Hard Coating on a TEGIMENT Technology basis
• Ar‑Dehumidifying Technology enhances functional reliability and freedom from fogging
• Temperature resistance technology, therefore, functionally reliable at temperatures from minus 45 °C up to 80 °C
• Magnetic Field Protection up to 80,000 A/m
Dimensions and Weight:
• Case diameter: 44 mm
• Band lug width: 22 mm
• Case thickness: 14 mm
• Weight without strap: 122 gramme
Dial and Hands:
• Matte black dial
• Indices coated with luminescent colour
• Hour- and minute hand coated with luminescent colour
Warranty: 3 years
The price for the Sinn Spezialuhren EZM 12 is 3,320 €.
